eoEEP_A507xx Class Reference

The class to handle EEP a507 profiles. More...

#include <eoEEP_A507xx.h>

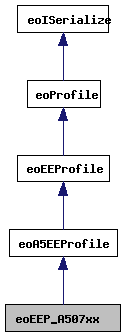

Inheritance diagram for eoEEP_A507xx:

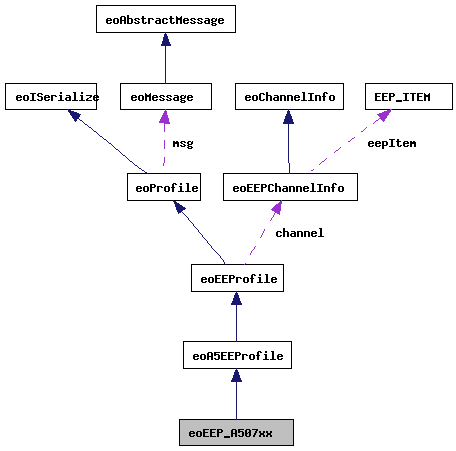

Collaboration diagram for eoEEP_A507xx:

Public Member Functions
eoReturn	SetType (uint8_t type)
eoReturn	GetValue (CHANNEL_TYPE type, float &value)
	Gets the Value as Floating Point. More...
eoReturn	SetValue (CHANNEL_TYPE type, float value)
	Sets the Value using a Floating Point. More...
eoReturn	GetValue (CHANNEL_TYPE type, uint8_t &value)
	Sets the Value using a unsigned integer. More...
eoReturn	SetValue (CHANNEL_TYPE type, uint8_t value)
	Sets the Value using a uint8_t. More...
Public Member Functions inherited from eoA5EEProfile
	eoA5EEProfile (uint16_t size=4)
virtual eoReturn	Create (eoMessage &m)
	Generates an EEP Message. More...
virtual eoReturn	CreateTeachIN (eoMessage &m)
	Generates an EEP Telegram(only not chained supported!!1) More...
virtual eoReturn	Parse (const eoMessage &msg)
	Parses a msg using learned in Profile from Device. More...
bool	Is4BSData (const eoMessage &m)
bool	IsSecDData (const eoMessage &m)
Public Member Functions inherited from eoEEProfile
	eoEEProfile (uint16_t size=4)
virtual eoReturn	GetValue (CHANNEL_TYPE type, uint32_t &value)
virtual eoReturn	GetValue (CHANNEL_TYPE type, uint8_t &value, uint8_t subFlag)
	Gets the Value as unsigned integer. More...
virtual eoReturn	GetValue (CHANNEL_TYPE type, uint32_t &value, uint8_t subFlag)
virtual eoReturn	GetValue (CHANNEL_TYPE type, uint64_t &value, uint8_t subFlag)
virtual eoReturn	GetValue (CHANNEL_TYPE type, float &value, uint8_t subFlag)
	Gets the Value as Floating point. More...
virtual eoReturn	SetValue (CHANNEL_TYPE type, uint32_t value)
virtual eoReturn	SetValue (CHANNEL_TYPE type, float value, uint8_t subFlag)
	Gets the Value as a float. More...
virtual eoReturn	SetValue (CHANNEL_TYPE type, uint8_t value, uint8_t subFlag)
	Gets the Value as unsigned integer. More...
virtual eoReturn	SetValue (CHANNEL_TYPE type, uint32_t value, uint8_t subFlag)
virtual eoReturn	SetValue (CHANNEL_TYPE type, uint64_t value, uint8_t subFlag)
	Sets the Value as a 64-bit. More...
virtual eoChannelInfo *	GetChannel (CHANNEL_TYPE type, uint8_t subType)
virtual eoChannelInfo *	GetChannel (CHANNEL_TYPE type)
virtual eoChannelInfo *	GetChannel (uint8_t channelNumber)
virtual eoReturn	GetSubTypeChannel (CHANNEL_TYPE type, std::vector< eoEEPChannelInfo *> &vector)
virtual uint8_t	GetChannelCount () const
Public Member Functions inherited from eoProfile
	eoProfile (uint16_t size=0)
virtual bool	operator== (const eoProfile &othProfile) const
virtual bool	operator!= (const eoProfile &othProfile) const
virtual void	ClearValues ()
virtual uint8_t	Serialize (eoArchive &a)
	Serialization Function which will be called by the eoStorageManager. More...
eoReturn	SetManufacturer (uint16_t manufacturerID)

Additional Inherited Members
Public Attributes inherited from eoProfile
uint8_t	rorg
	R-ORG.
uint8_t	func
	Func.
uint8_t	type
	Type.
uint16_t	manufacturer
	Manufacturer.
Static Protected Member Functions inherited from eoEEProfile
static void	CopyItemToChannel (eoEEPChannelInfo &channel, EEP_ITEM const *item)
Static Protected Member Functions inherited from eoProfile
static float	ScaleFromRAW (uint32_t rawValue, uint32_t rangeMin, uint32_t rangeMax, double scaleMin, double scaleMax)
	Creates floating Point from Raw Value. More...
static uint32_t	ScaleToRAW (float value, uint32_t rangeMin, uint32_t rangeMax, double scaleMin, double scaleMax)
	Creates Raw Value from a floating Point. More...
static eoReturn	GetRawValue (const eoMessage &msg, uint32_t &value, uint16_t offset, uint8_t size)
	Gives raw data Value from a Message. More...
static eoReturn	SetRawValue (eoMessage &msg, uint32_t value, uint16_t offset, uint8_t size)
	Inserts raw data Value in a message. More...
Protected Attributes inherited from eoEEProfile
eoEEPChannelInfo *	channel
	ChannelInfo list for direct Access to channels.
uint8_t	channelCount
	Number of channels.
Protected Attributes inherited from eoProfile
eoMessage	msg
	helper function to convert bits
Static Protected Attributes inherited from eoProfile
static const uint8_t	maskArray [8]
	Mask array.

Detailed Description

The class to handle EEP a507 profiles.

Allows the user to handle EEP a507 profiles, the following profile is available:

• A5-07-01
• A5-07-02
• A5-07-03
  The following channels are available for type 01:

  Channel Index	Channel Type	Type
  0	S_VOLTAGE	float
  1	F_OCCUPIED	uint8_t


  The following channels are available for type 02 and for type 03:

  Channel Index	Channel Type	Type
  0	S_VOLTAGE	float
  1	S_LUMINANCE	float
  2	F_OCCUPIED	uint8_t

Member Function Documentation

GetValue() [1/2]

eoReturn eoEEP_A507xx::GetValue ( CHANNEL_TYPE  type, float &  value  )

virtual

Gets the Value as Floating Point.

Using the CHANNEL_TYPE type information, this information gets the floating point value accordingly, if the Profile does not support the requested CHANNEL_TYPE NOT_SUPPORTED is returned, if the functions is not implemented for the chosen profile, NOT_IMPLEMENTED is returned

Parameters

type	CHANNEL_TYPE
value	Reference to floating point

Returns

eoReturn EO_OK,NOT_SUPPORTED,NOT_IMPLEMENTED

Reimplemented from eoEEProfile.

GetValue() [2/2]

eoReturn eoEEP_A507xx::GetValue ( CHANNEL_TYPE  type, uint8_t &  value  )

virtual

Sets the Value using a unsigned integer.

Using the CHANNEL_TYPE type information, this information sets the channel raw value, using the floating point value accordingly, if the Profile does not support the requested CHANNEL_TYPE NOT_SUPPORTED is returned, if the functions is not implemented for the chosen profile, NOT_IMPLEMENTED is returned

Parameters

type	CHANNEL_TYPE
value	Reference to floating point
value	Reference to uint8_t

Returns

eoReturn EO_OK,NOT_SUPPORTED,NOT_IMPLEMENTED

Reimplemented from eoEEProfile.

SetType()

eoReturn eoEEP_A507xx::SetType ( uint8_t  type )

virtual

Sets and checks if the specified [EEP] type is supported

Parameters

type

Returns

eoReturn EO_OK or NOT_SUPPORTED

Reimplemented from eoProfile.

SetValue() [1/2]

eoReturn eoEEP_A507xx::SetValue ( CHANNEL_TYPE  type, float  value  )

virtual

Sets the Value using a Floating Point.

Using the CHANNEL_TYPE type information, this information sets the channel raw value, using the floating point value accordingly, if the Profile does not support the requested CHANNEL_TYPE NOT_SUPPORTED is returned, if the functions is not implemented for the chosen profile, NOT_IMPLEMENTED is returned

Parameters

type	CHANNEL_TYPE
value	Reference to floating point

Returns

eoReturn EO_OK,NOT_SUPPORTED,NOT_IMPLEMENTED

Reimplemented from eoEEProfile.

SetValue() [2/2]

eoReturn eoEEP_A507xx::SetValue ( CHANNEL_TYPE  type, uint8_t  value  )

virtual

Sets the Value using a uint8_t.

Using the CHANNEL_TYPE type information, this information sets the channel raw value, using the uint8_t value accordingly, if the Profile does not support the requested CHANNEL_TYPE NOT_SUPPORTED is returned, if the functions is not implemented for the chosen profile, NOT_IMPLEMENTED is returned

Parameters

type	CHANNEL_TYPE
value	Reference to floating point

Returns

eoReturn EO_OK,NOT_SUPPORTED,NOT_IMPLEMENTED

Reimplemented from eoEEProfile.
