Telegram Log

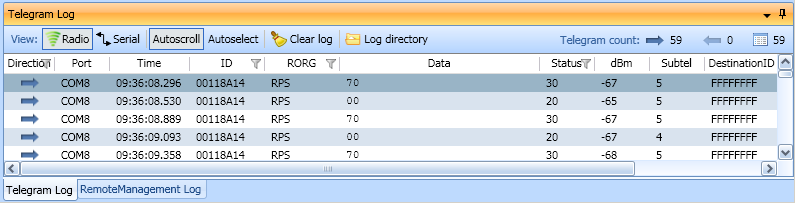

Telegram Log module is used for logging all EnOcean radio and serial telegrams, offering basic analysis of a telegram via listing of all necessary information of the telegram (Time stamp, TYP, RORG/SORG, DATA, ID, RSSI, number of Sub-telegrams etc.). The information visible in this listbox is also logged to a XML log file located in the installation directory of DolphinView\Logd under the log directory.

Radio

Displays EnOcean radio telegrams (RORG)

Serial

Displays EnOcean serial telegrams (SORG).

Autoscroll

Automatically scrolls to the last received telegram.

Autoselect

Automatically selects the last received telegram.

Clear Log

Clears the current log

Log Directory

Opens an explorer window showing the directory where the logfiles are saved. By default the logfiles are saved in the XML-Format

Telegram count

Telegram count part shows basic statistics of logged telegrams:

Total count of incoming telegrams.
Total count of outgoing telegrams.
Number of telegrams shown in Telegram Log list view - Telegram Log has a limit for logging telegrams. When the limit is reached the oldest telegram is deleted from the Telegram Log and a new telegram is added. This is the reason why this number is not increased after some time.

Telegram Log Filtering

Telegram Log module implements also filtering of telegrams in the log, which can be initiated by left mouse click on the column header. Please note that the node from which the telegrams are supposed to be filtered has to be in the workspace.
