Keil uVision settings

In order to use the EOPX with Keil uVision, following has to be set in Keil:

External Tool for Flash Programming
User Program After Build
Add postbuild.txt script to Keil project

Following figures illustrates the Keil uVision settings.

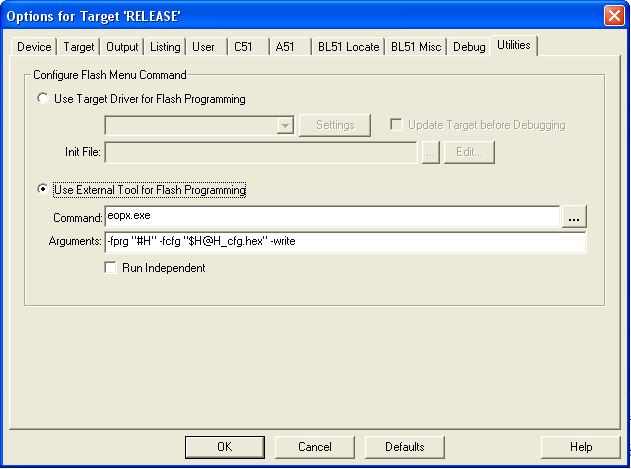

Setting Flash Programming tool

Command:

 C:\Program Files\EnOcean\DolphinStudio\eopx.exe

Arguments:

 -fprg "#H" -fcfg "$H@H_cfg.hex" -write

"#H" is replaced by uVision as the output .hex (C:\MyProject\Output\sample.hex)
"$H@H_cfg.hex" is replaced by uVision as configuration area file (C:\MyProject\Output\sample_cfg.hex)

Optionaly:

If you use the the setBist with [first_data_obj] parameter, the -fmap switch needs to be specified.

 -fmap "$H@H.m51" -write

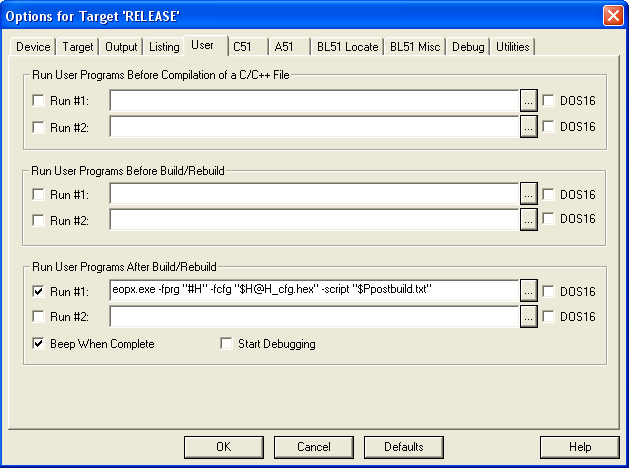

Setting Post-build tools

After the Build/Rebuild process was successful, the EOP2 post-build tools are executed in order to patch the BIST CRC in program area and ProgramSize byte in configuration area.

Run #1:

eopx.exe -fprg "#H" -fcfg "$H@H_cfg.hex" -script "$Ppostbuild.txt"

NOTE: If the –fcfg file does not exist, it will be created.

Creating postbuild script

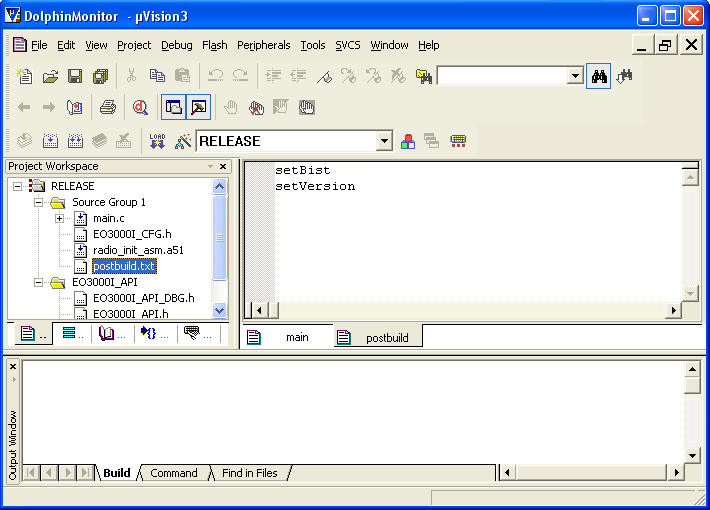

Add new file "postbuild.txt" to your Keil project as shown on following figure:

Listing of postbuild.txt:

setBist
setVersion
