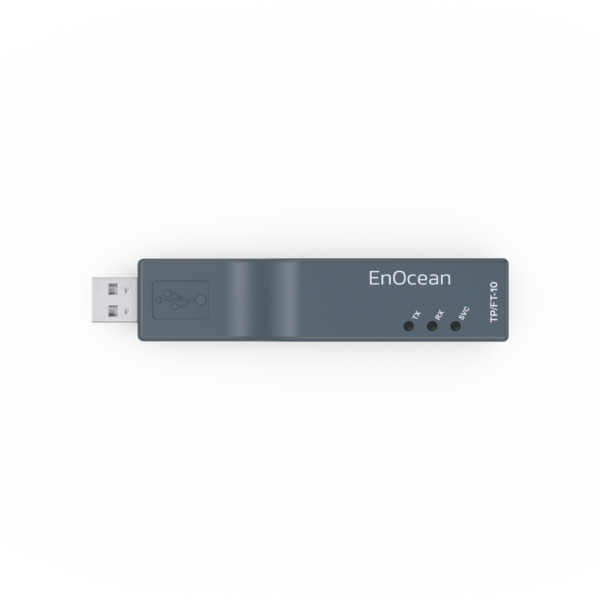

U10 USB Network Interface

Expand low-cost, high-performance LON interface for USB-enabled PCs

Description:

The U10 USB Network Interface connects to a TP/FT-10 Free Topology Twisted Pair (ANSI/CEA-709.3) LON channel through a removable connector and is fully compatible with link-powered channels. It connects LNS™-enabled integration and development tools to LON networks and is ideal for industrial control, building automation, process control, home automation, and transportation applications.

A 60cm USB extension cable is included with the U10 interface to allow for easy connection in various laptop and desktop environments.

Article name:

U10 USB Network Interface

Features:

Low-cost USB to LON network interface facilitates integration and development
Free topology twisted pair (TP/FT-10) LON channel support
Highest possible network throughput and performance
Rugged design, removable connectors
Plug-and-play drivers for Windows XP, 2000, and Server 2003
Functions as an LNS High Performance Network Interface when used with LNS 3 and LNS Turbo Edition
Compatible with OpenLDV applications and the LonScanner Protocol Analyzer

Specifications:

Transceiver: TP/FT-10(ANSI/CEA-709.3 and LonMark™ standard channel type); link power compatible
Network connector: Removable spring clamp and screw terminal connectors included
Operating input current: 50 mA maximum @ 5Vdc
USB compatibility
- Certified USB 2.0 compatible
- Compatible with USB 1.1 and high-speed USB systems, peripherals and cables
LED indicators: Service (amber), Transmit (green), Receive (green)
Temperature
- Operating: 0° to +70°C
- Non-operating: -20° to +85°C
Humidity
- Operating (non-condensing): 25 to 90% RH @ + 50°C
- Non-operating (non-condensing): 95% RH @ +70°C
Shock and Vibration: ETSI300 019-2-3 T3.2
Dimensions: 18.2 mm H x 113.2mm L x 22.4 mm W
EMC: FCC Part 15 level B, EN55022 Class B, EN55024, CISPR 22 Class B, VCCI Class B
Agency Listings: UL 60950, cUL C22.2 60950-00, TUV EN 60950, CE, C-Tick
