U70 PL-20 USB Network Interface expansion module

USB interface for LON PL Networks for any Edge server, gateway, controller or device, including SmartServer IoT

Beschreibung:

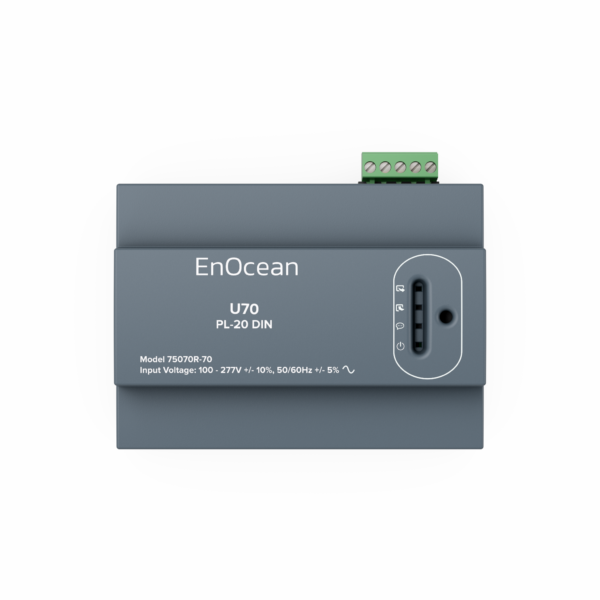

The U70 PL-20 USB Network Interface expansion module enables a SmartServer IoT or other controller or computer to communicate with LON PL-20 and LON/IP PL-20 power line carrier networks via USB. The compact module is housed in a DIN 43880 7TE compliant enclosure.

The U70 is compatible with OpenLDV 5 (or newer) and with hosts implementing the LON/IP stack, which provides source code for LON/IP and LON-compatible protocol stacks.

The U70 facilitates communication to everyday devices like pumps, motors, valves, sensors, actuators and lights for lighting controls, building automation, energy management, transportation systems control and telecommunications equipment management. Tx and Rx LEDs provide an indication of LON packet transmission and reception.

An on-board Connect LED provides a visual indication of device status during discovery and device configuration; status is also communicated to the host via the USB interface.

Artikelname:

U70 PL-20 USB Network Interface expansion module

Bestellnummer:

HS-Code:

Verpackungseinheit:

ECCN:

Features:

Includes integrated 3-phase power line coupler and 24VDC power supply
Powered by power line mains voltage
Compatible with IzoT Net Server, OpenLNS Server, LNS Server and OpenLDV applications
Works with IzoT Net and LNS compatible applications such as the IzoT Commissioning Tool and LonMaker Integration Tool
Compatible with SmartServer IoT
Source code available as a download for a Linux-compatible driver

Specifications:

Hardware and electrical specifications

PL Smart Transceiver Processor
1 MB flash memory
64 KB RAM
USB Micro-B 2.0, compatible with USB 1.1 and high-speed USB systems, peripherals and cables
USB cable with Mirco-B USB to Type A USB connectors included
Mains interface 1-3 phase AC
Input voltage 100-277VAC +/- 10%, 50-60Hz +/-5% (AC mains power input, single phase used for power; up to three phases used for communication)
Input power 2.5W no-load max (for Vin ≤ 120VAC) 35W max
Output voltage 24VDC +/- 5%
Output current 350mA max
Indicators
- LON Tx/Rx LEDs
- Connect LED
- Power LED
Operating temperature -40°C to +70°C
Operating humidity 5-95% RH non-condensing @ 50°C
EN 61000-4-5:2006, +/- 6KV surge protection
DIN 43880 7TE mounting

Software platform

LON/IP PL-20 and LON PL-20 with a Layer 2 or Layer 5 Interface
Drivers
- Windows: OpenLDV 5 (or newer)
- Linux: Source code available for porting

Safety and compliance

UL/IEC/CSA 62368-1
FCC/CE/ICES/AS/NZ/VCCI CISPR 32 Class B; EN 55024, CISPR 24

Support:

Edge Support Portal

Edge Documentation Portal

Contact technical support

How to buy:

Contact sales representative

Downloads

Datasheet U70 PL-20 USB Network Interface expansion module (PDF 458 kB)

Declaration of Conformity (PDF 245 kB)
